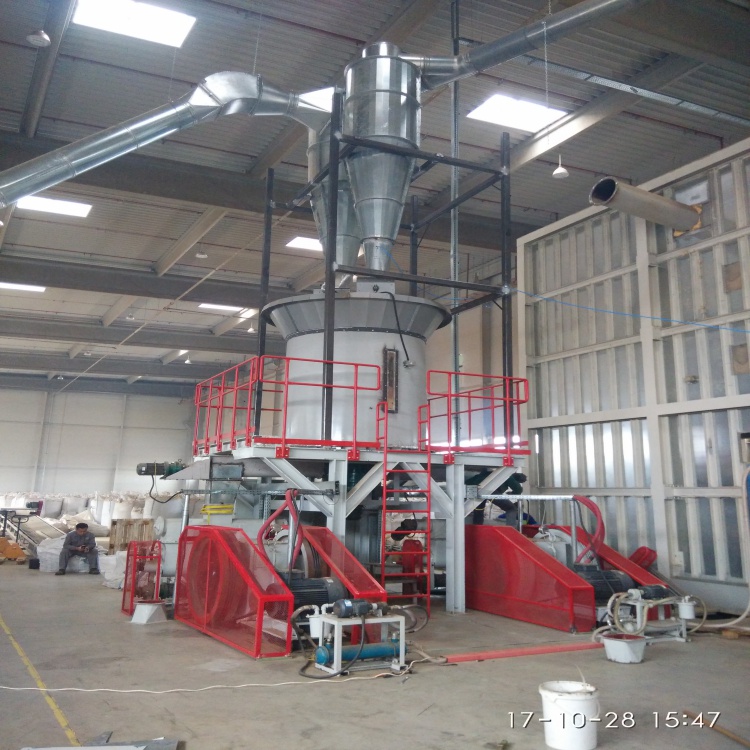

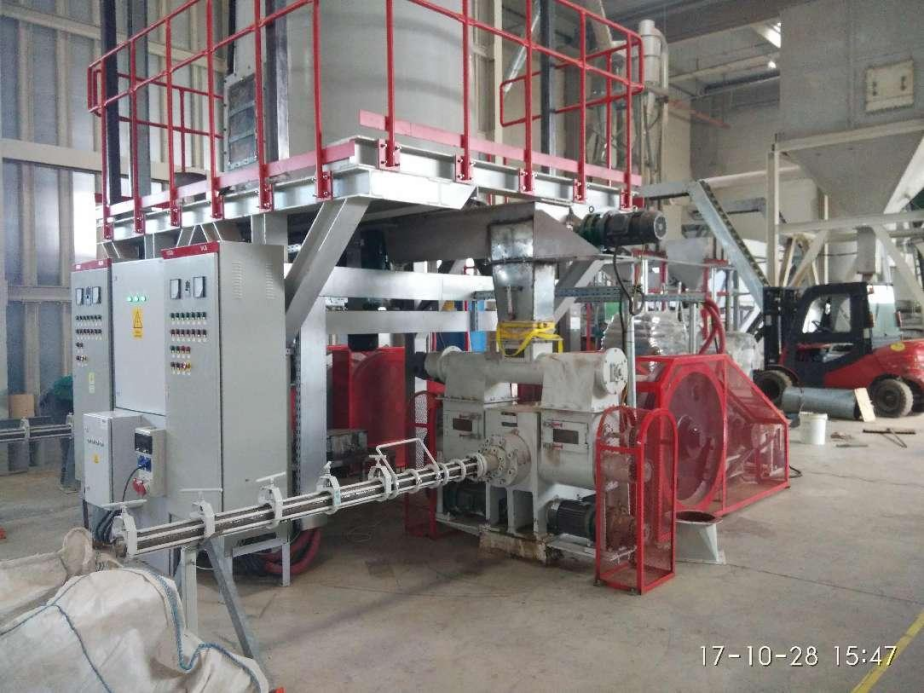

0.6-1.2T/H 50-100mm Solid Briquette Machine
Longze Biomass Briquette Machine is a high-efficiency equipment for biomass processing, available in two models (XNY-1000C and XNY-2000C) to meet different production needs.
The complete set includes screw conveyor, main press machine, control cabinet, oil cooling equipment and related pipes. Its capacity ranges from 600-1200kg/h to 2000-3000kg/h, with total power 60kw to 110kw and 380V 50Hz industrial voltage (customizable for XNY-1000C).
MESSAGE
CONTACT US
PRODUCT DESCRIPTION
MACHINE LOADING
CUSTOMER CASE
FACTORY CIRNER


0.6-1.2T/H 50-100mm Solid Briquette Machine

Biomass Briquette Machine

Biomass Briquette Machine

Model

XNY-1000C

Payment terms

T/T payment; 30% in advance and 70% before shipping

Delivery time

within 30 days after receiving 30% advanced payment

With 20OT container for loading complete set

Technical Parameters

Complete set Including

(1) Screw conveyor (2) Main press machine

(3) Control cabinet  (4) Oil cooling equipment

(5Output pipes

Capacity

600-1200KG/H (Capacity depends on different raw material)

Industrial Voltage

380V 50Hz /Customized

Power

Total 60kw (MOTORS ARE CE HUALI BRAND)

Size of raw material

<20mm

Moisture of material:

<15%

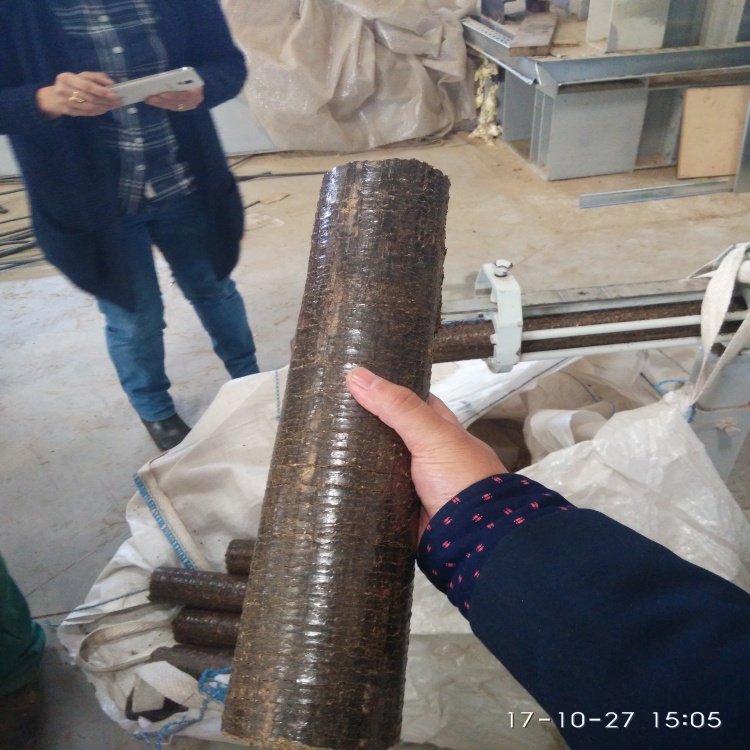

Size of final briquettes

Diameter8mm,10mm,12mm,15mm,22mm,38mm,50mm,90mm,100mm

Density of briquettes

1-1.4 g/cm3according to different raw material

Moisture of briquettes

<10%

Overall dimension

L3500*W1800*H2300 mm per set

Total weight

7200KG

Workers needed

3workers

Power consumption

50 KWH/ton

2-3T/H 50-100mm Solid Briquette Machine

Biomass Briquette Machine

Model

XNY-2000C

Payment terms

T/T payment; 30% in advance and 70% before shipping

Delivery time

within 30 days after receiving 30% advanced payment

Technical Parameters

Including

(2) Screw conveyor (2) Main press machine

(4) Control cabinet (4) Oil cooling equipment

5Cooling pipe

Capacity

2000-3000kg/h

Industrial Voltage

380V   50Hz

Power

110kw

Size of raw material

<20mm

Moisture of material:

<15%

Size of final briquettes

Diameter9mm,15mm,22mm,38mm,50mm,90mm,100mm

Density of briquettes

1-1.4 g/cm3according to different raw material

Moisture of briquettes

<10%

Overall dimension

L3800*W2500*H2300 mm per set

Total weight

14000KG

Workers needed

3workers

Power consumption

40 KWH/ton
