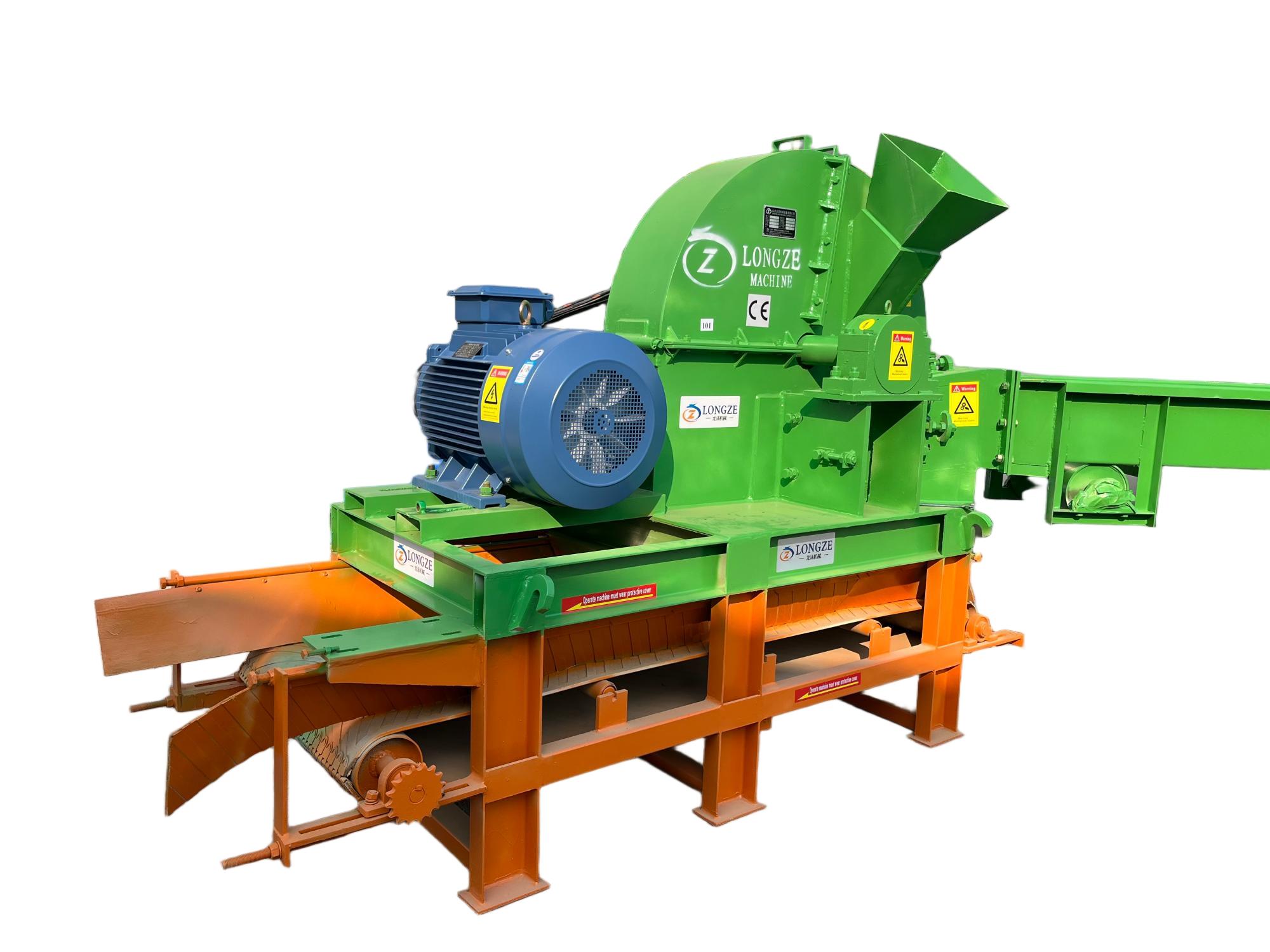

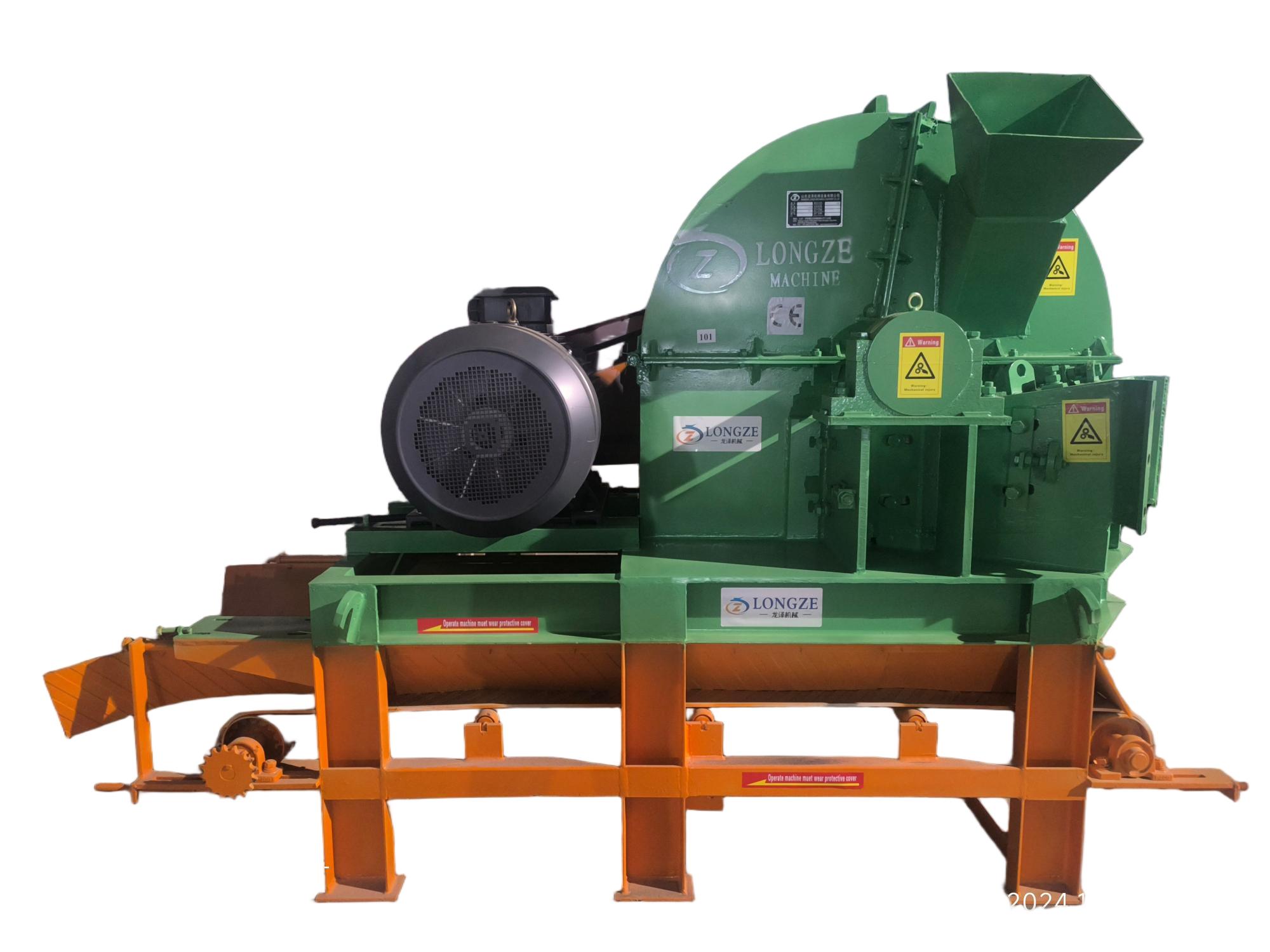

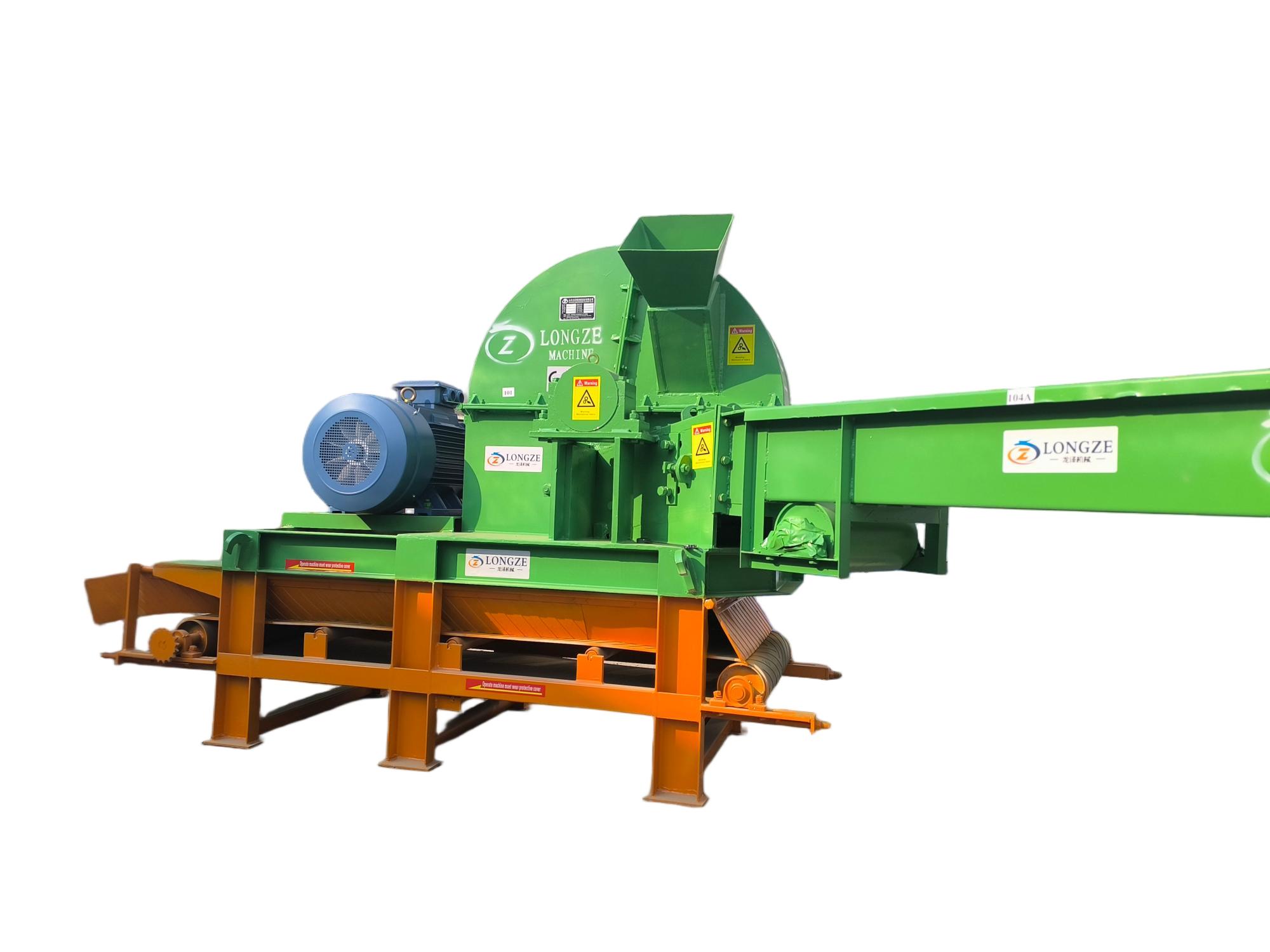

160kw PX1800 wood chipper
Model:PX1800
Rotation speed(rpm):420
Blade QTY(piece):6
Chip size(mm):20-35
Input size(mm):500x500
capacity(TPH):30-40
Main power(kw):160
Feed + discharge motor (kw):5.5+5.5
Disc diameter (mm):1800
Weight (t):8.5
Feed conveyor width (mm):550
Feed conveyor length (mm):6000
Discharge conveyor width (mm):1300
Discharge conveyor length (mm):10000
PRODUCT DESCRIPTION
MACHINE LOADING
CUSTOMER CASE
FACTORY CIRNER

Machine Induction

The raw materials are fed into disc wood chipper through inlet port, the raw materials are shredded through high speed rotate of the knife-carrier disc. The shredded materials are discharged in outlet port through the strong air come from it own rotation.


Technical Parameter

ModelPX1800
Rotation speed(rpm)420
Blade QTY(piece)6
Chip size(mm)20-35
Input size(mm)500x500
capacity(TPH)30-40
Main power(kw)160
Feed + discharge motor (kw)5.5+5.5
Disc diameter (mm)1800
Weight (t)8.5
Feed conveyor width (mm)550
Feed conveyor length (mm)6000
Discharge conveyor width (mm)1300
Discharge conveyor length (mm)10000


Raw Material

Wood Chipper can process various wood logs, branches, and other forestry wood waste. wood harvesting residues (trunks, branches, etc.) Wood processing residues (bark, slats, log waste, scrap wood planks, etc.)The final product is 3-5cm wood chips.


Application

1. Used in paper mills

2. For furniture factory

3. Used in power plants and boiler plants

4. Used to make biomass pellets

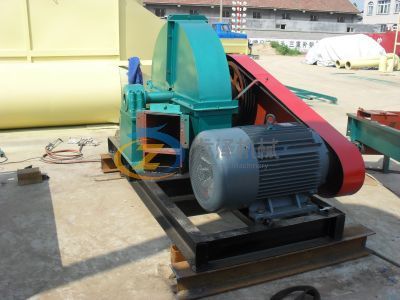

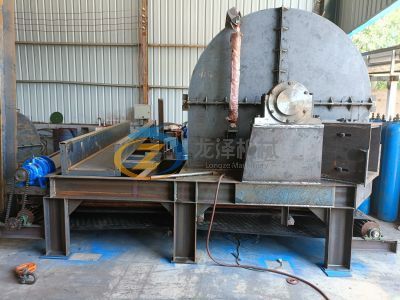

Machine Details Pic

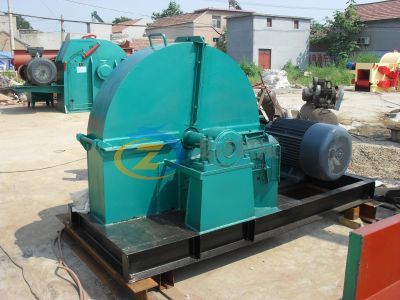

main picture.jpg

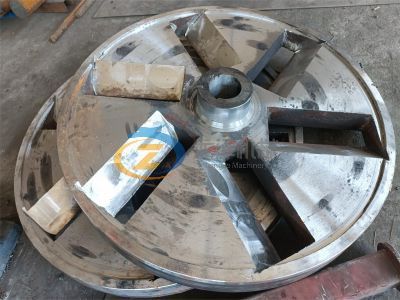

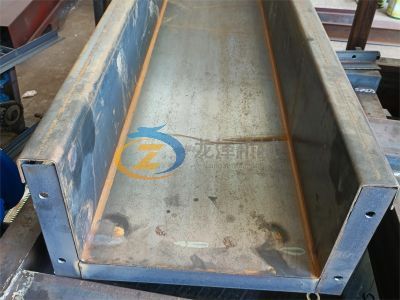

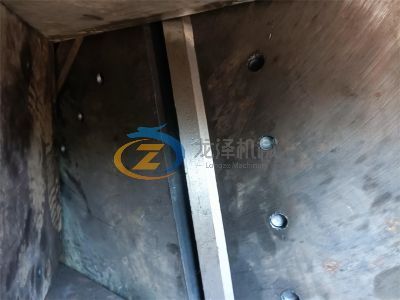

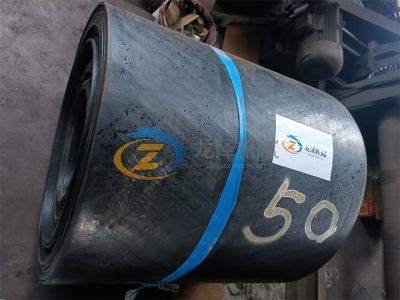

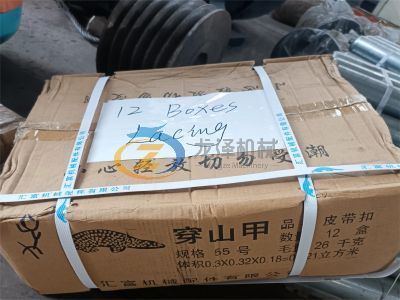

Spare Parts

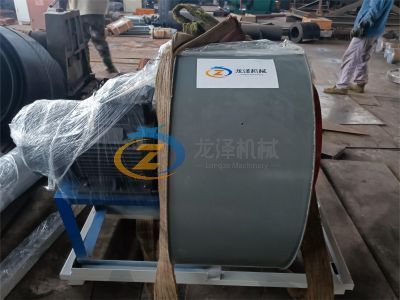

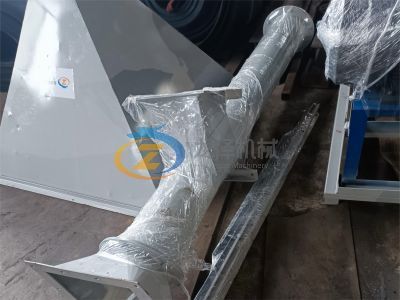

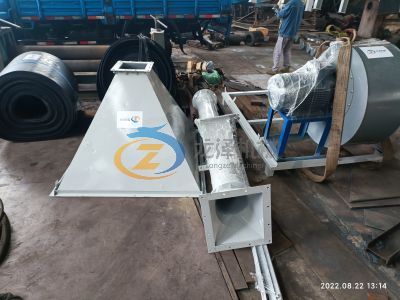

Loading Product Including:

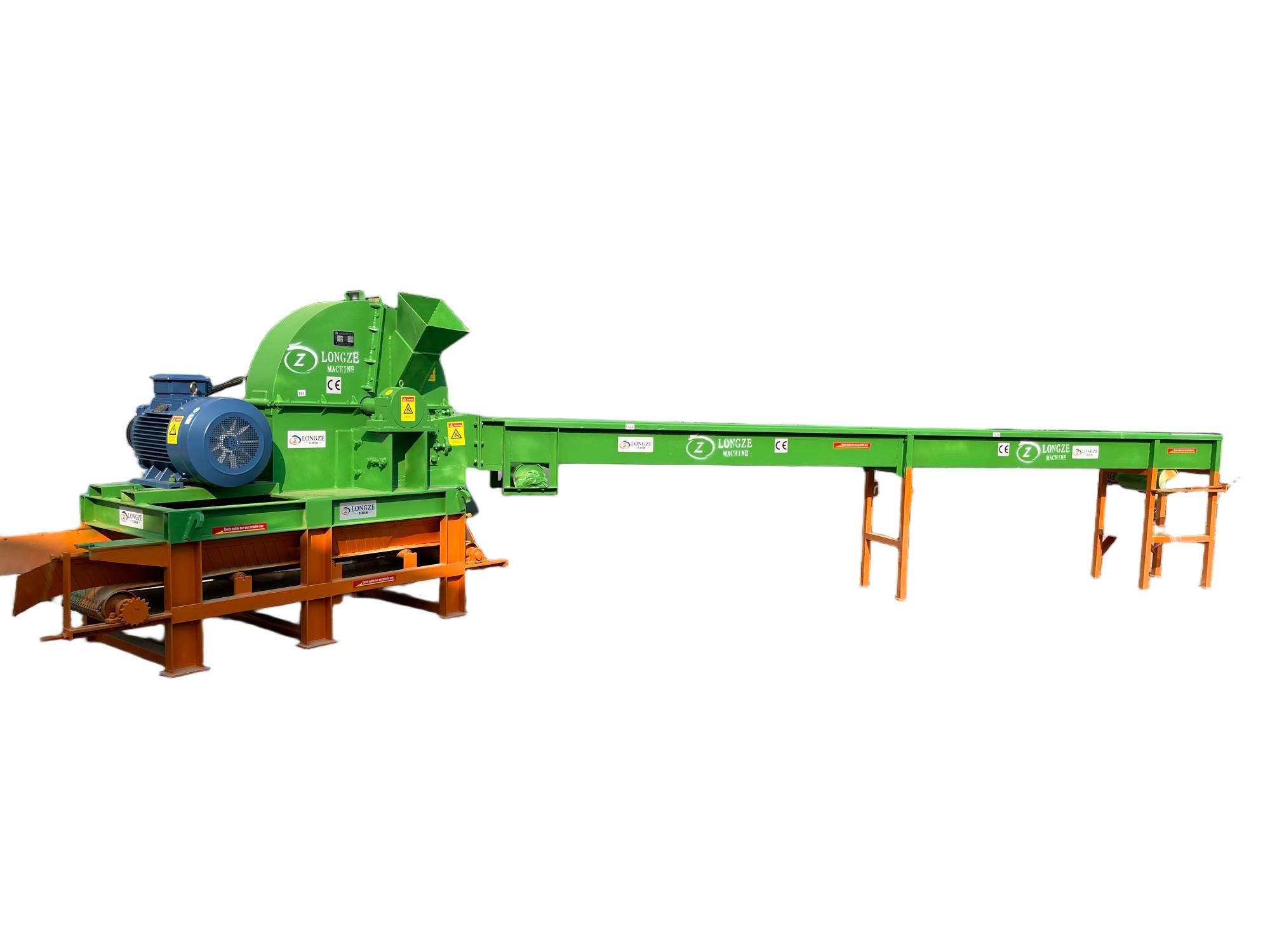

160KW GPX1800 DISC WOOD CHIPPER

4M BELT FEEDING CONVEYOR

10M BELT DISCHARGING CONVEYOR

CONTROL CABINET

ALL MOTORS

40’HQ/6PKG/8500KGS/20CBM

Loading equipment:8ton forklift,3 loading staffs









Longze factory covers an area of nearly 60,000 square meters, with large wood chipper, wood hammer mill, wood dryer, wood pellet machine, cooling machine, packing machine and wood pellet making related assistant equipment. The company not only cooperates with China “CHINT”, “DELIXI”, “SCHNEIDER”, ”HARBIN BEARING”, German brand “Siemens Motor” and other domestic more than 500 large and medium-sized enterprises to establish long-term strategic cooperative relations. The products are also exported to more than 60 countries and regions in Europe, Spain, Romania, Bulgaria, the Middle East, India, Pakistan, Southeast Asia Vietnam, Malaysia, Thailand, Indonesia, Myanmar, and Australia. The equipment is widely used in Power Plant, Paper Mill, Furniture Factory, Biomass Energy Industry.
