Rotation speed（rpm）：635
Blade QTY（piece）：6
Chip size（mm）：20-35
Input size（mm）：320x320
capacity（TPH）：10-15
Main power（kw）：75
Feed + discharge motor (kw)：3+3
Disc diameter (mm)：1300
Weight (t)：3.6
Feed conveyor width (mm)：350
Feed conveyor length (mm)：4000
Discharge conveyor width (mm)：600
Discharge conveyor length (mm)：10000
Machine Induction
Disc wood chipper is the special equipment for producing wood chips. The series wood chippers are mainly applied to shavings board factory, medium and high density fiber board plant, stubble plant, biomass energy power plant, wood chips plant and so on. Meanwhile, the wood chippers are the preferred device in the preparation section for the manufacturers.
Technical Parameter
Raw Material
Wood Chipper can gadget a differ of trees logs, branches, and forestry bushes waste. wooden harvesting residues (trunks, branches, etc.) Wood processing residues (bark, slats, log waste, scrap timber planks, etc.)The closing product is 3-5cm chips.
Application
1. Used in paper mills
2. For furniture factory
3. Used in power plants and boiler plants
4. Used to make biomass pellets

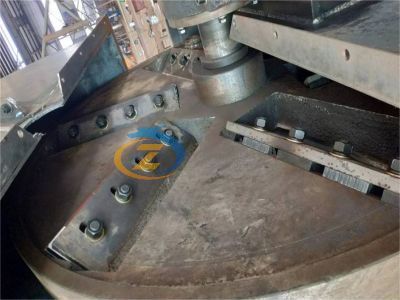

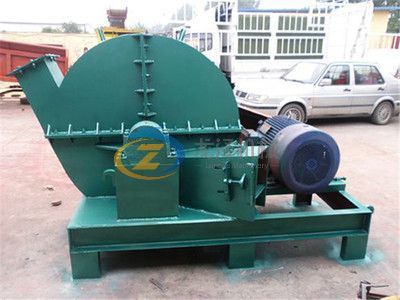

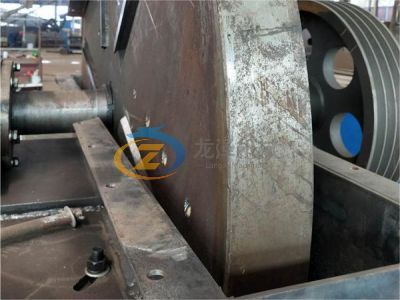

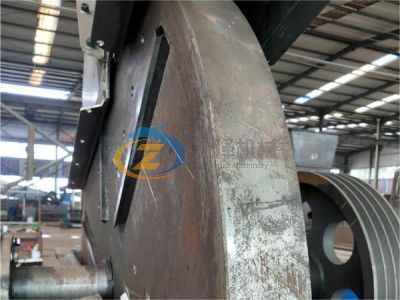

Machine Details Pic
Spare Parts

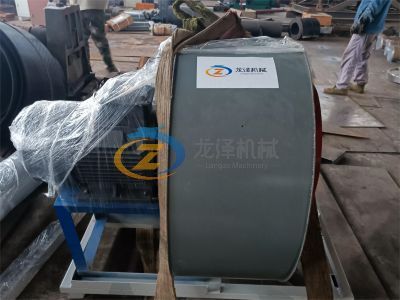

Loading Product Including:

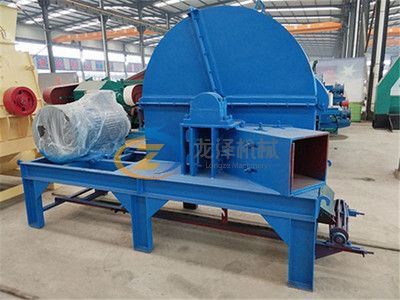

75KW GPX1300 DISC WOOD CHIPPER
4M BELT FEEDING CONVEYOR
10M BELT DISCHARGING CONVEYOR
CONTROL CABINET
ALL MOTORS

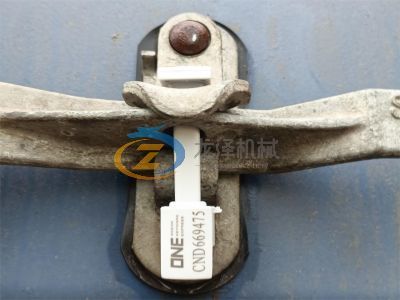

20’GP/6PKG/3600KGS/20CBM

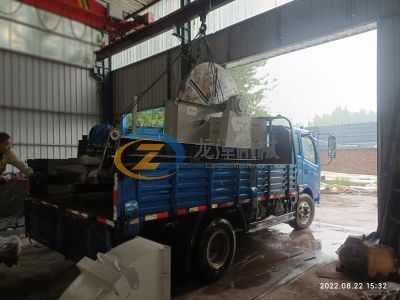

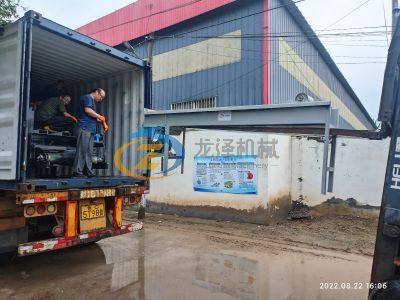

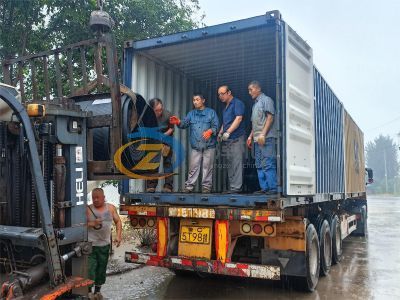

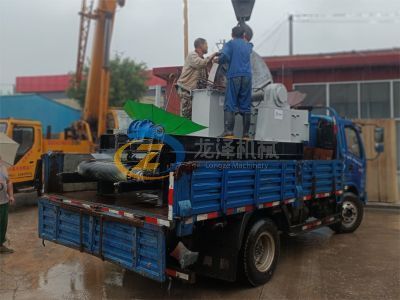

Loading equipment:8ton forklift,3 loading staffs
Longze factory covers an area of nearly 60,000 square meters, with large wood chipper, wood hammer mill, wood dryer, wood pellet machine, cooling machine, packing machine and wood pellet making related assistant equipment. The company not only cooperates with China “CHINT”, “DELIXI”, “SCHNEIDER”, ”HARBIN BEARING”, German brand “Siemens Motor” and other domestic more than 500 large and medium-sized enterprises to establish long-term strategic cooperative relations. The products are also exported to more than 60 countries and regions in Europe, Spain, Romania, Bulgaria, the Middle East, India, Pakistan, Southeast Asia Vietnam, Malaysia, Thailand, Indonesia, Myanmar, and Australia. The equipment is widely used in Power Plant, Paper Mill, Furniture Factory, Biomass Energy Industry.
55kw PX1150 wood chipperModel：PX1150
Rotation speed（rpm）：635
Blade QTY（piece）：6
Chip size（mm）：20-35
Input size（mm）： 270x270
capacity（TPH）：5-10
Main power（kw）：55
Feed + discharge motor (kw)：3+3
Disc diameter (mm)：1150
Weight (t)：2.8
Feed conveyor width (mm)：350
Feed conveyor length (mm)：4000
Discharge conveyor width (mm)：600
Discharge conveyor length (mm)：10000- 110kw PX1600 wood chipperModel：PX1600
Rotation speed（rpm）：620
Blade QTY（piece）：6
Chip size（mm）：20-35
Input size（mm）：420x420
capacity（TPH）：15-25
Main power（kw）：110
Feed + discharge motor (kw)：3+3
Disc diameter (mm)：1600
Weight (t)：6.58
Feed conveyor width (mm)：470
Feed conveyor length (mm)：6000
Discharge conveyor width (mm)：900
Discharge conveyor length (mm)：10000 - 160kw PX1800 wood chipperModel：PX1800
Rotation speed（rpm）：420
Blade QTY（piece）：6
Chip size（mm）：20-35
Input size（mm）：500x500
capacity（TPH）：30-40
Main power（kw）：160
Feed + discharge motor (kw)：5.5+5.5
Disc diameter (mm)：1800
Weight (t)：8.5
Feed conveyor width (mm)：550
Feed conveyor length (mm)：6000
Discharge conveyor width (mm)：1300
Discharge conveyor length (mm)：10000
