Rotor diameter (mm)：1300
Blade quantity (piece)：4
Input size (mm)：700 x 400
Rotor rotation speed (rpm)：500
Feed speed (m/min)：38
Max wood diameter (mm)：380
Production capacity (TPH)：20-25
Main power (kw)：200
Feed power (kw)：11+7.5
Discharge power (kw)：4 + 5.5
Oil pump power (kw)：4
Feeding conveyor length (m)：6
Discharge conveyor length (m)：10
Machine Induction

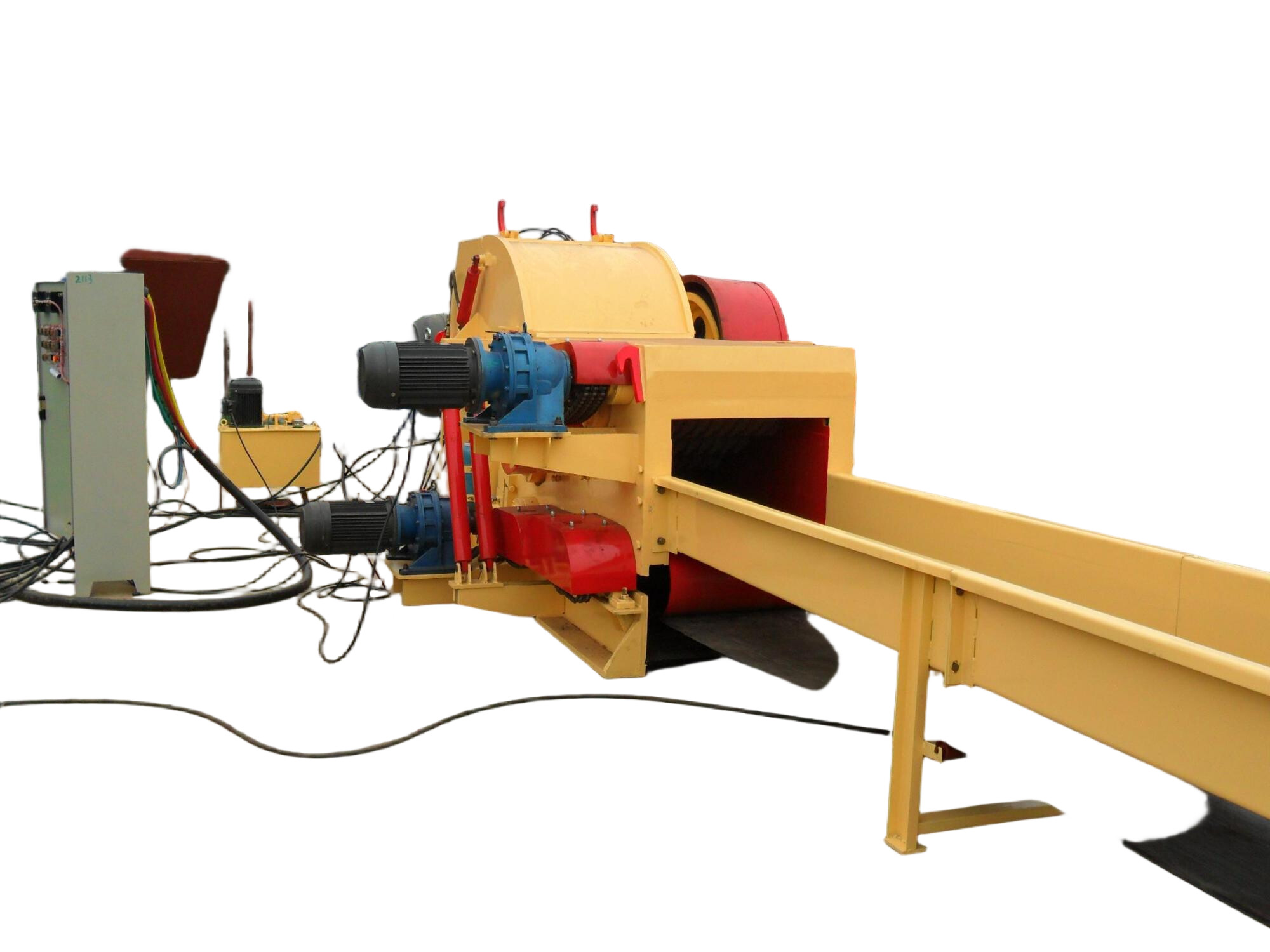

200kw GX2113 wood chipper can be installed on the concrete or steel structural support foundation, and fixed by land bolt. In order to open cover to replace rotary blade and assemble and dismantle bottom blade base, must according to the size supplied by “installation foundation sketch up”, and ensure there is enough space.
Technical Parameter
Raw Material
Wood Chipper can procedure a range of wooden logs, branches, and different forestry timber waste. wooden harvesting residues (trunks, branches, etc.) Wood processing residues (bark, slats, log waste, scrap timber planks, etc.)The closing product is 3-5cm timber chips.
Application
1. Used in paper mills
2. For furniture factory
3. Used in power plants and boiler plants
4. Used to make biomass pellets

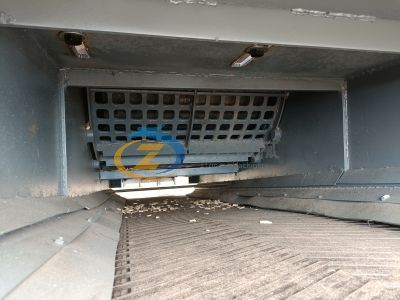

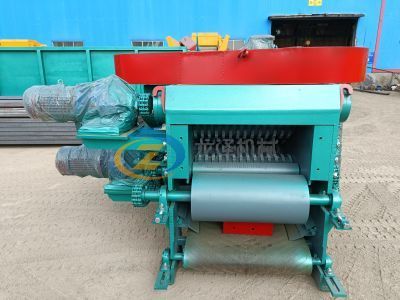

Machine Details Pic

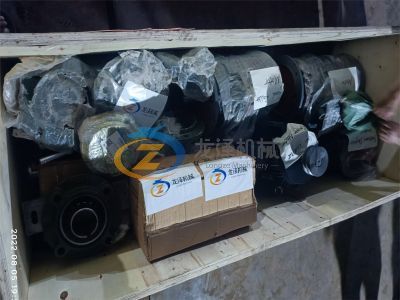

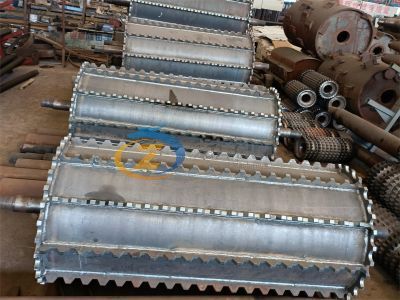

Spare Parts

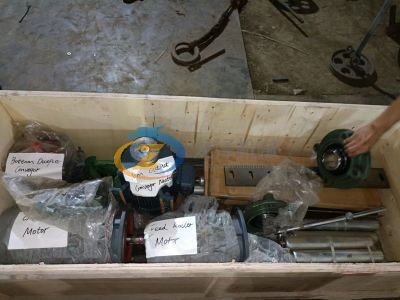

Loading Product Including:

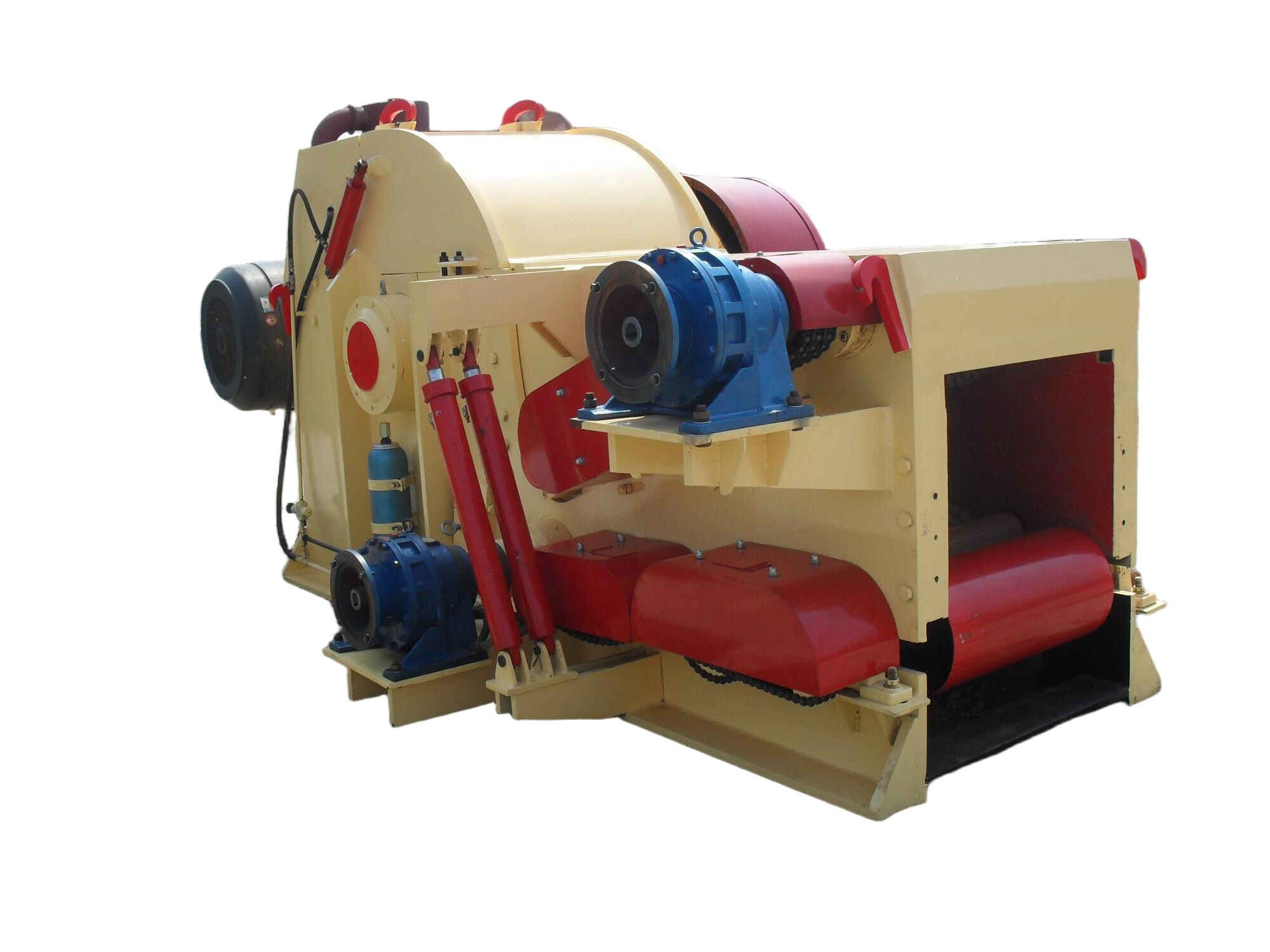

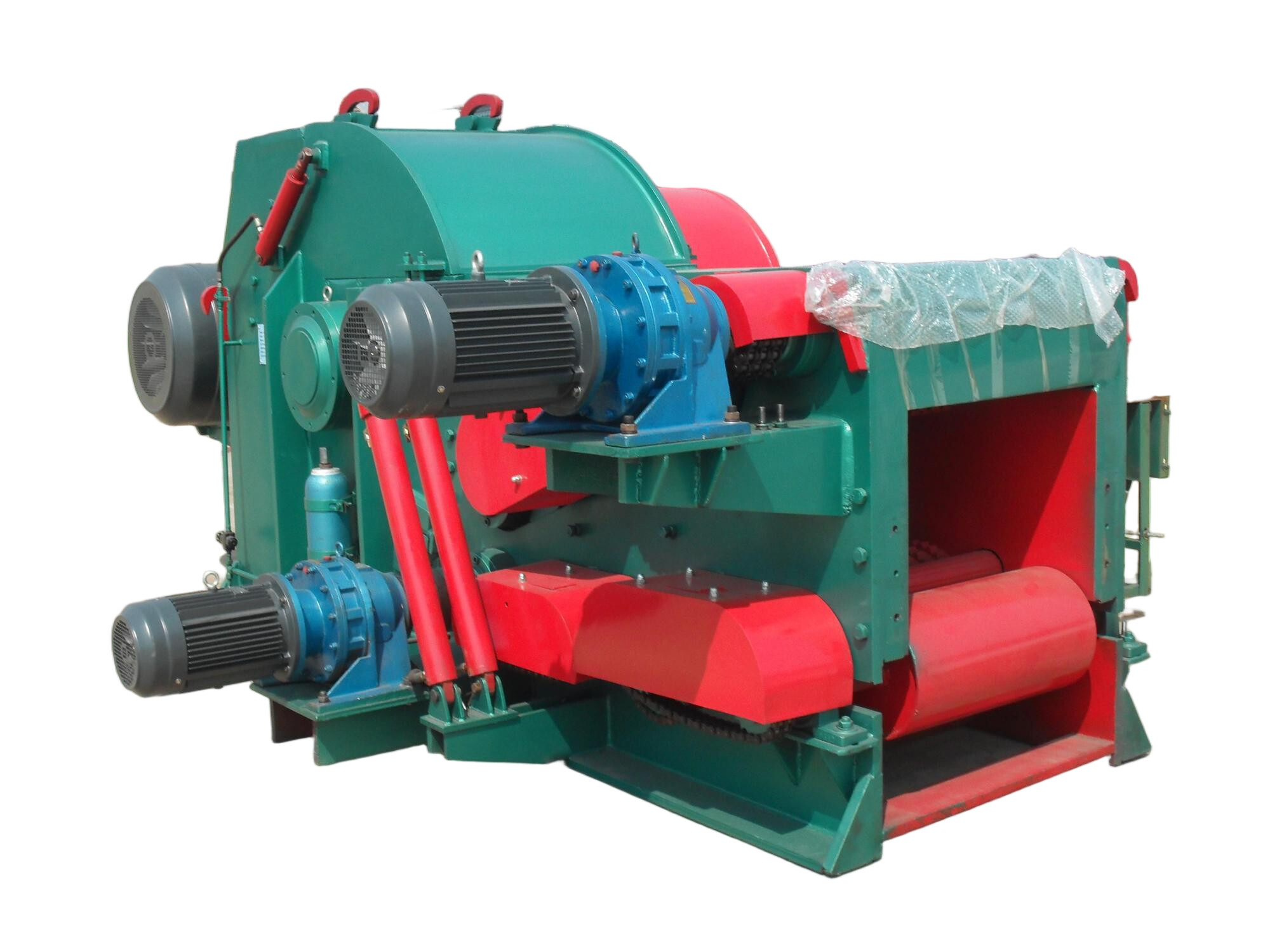

200KW GX2113 DRUM WOOD CHIPPER

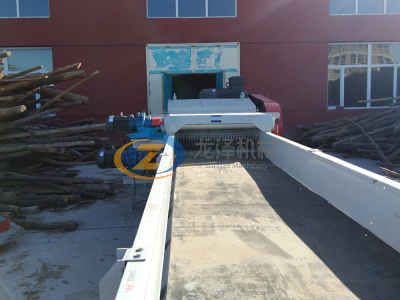

6M BELT FEEDING CONVEYOR
10M BELT DISCHARGING CONVEYOR

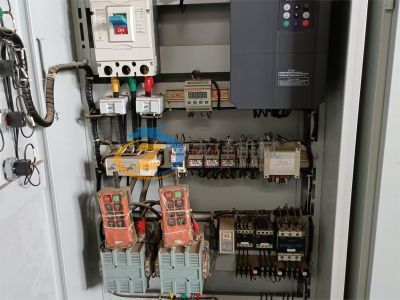

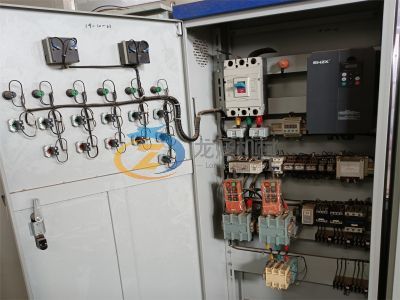

CONTROL CABINET
ALL MOTORS
ONE EXTRA SET OF BLADES

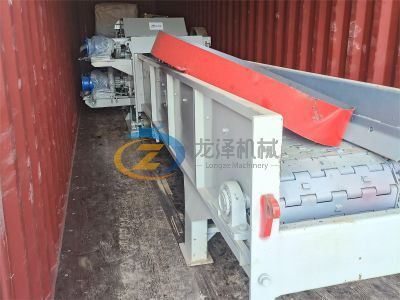

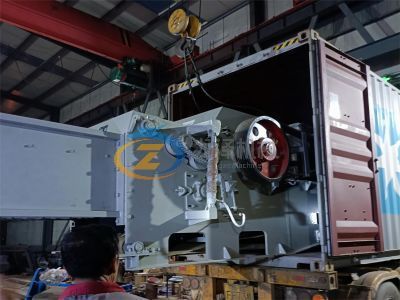

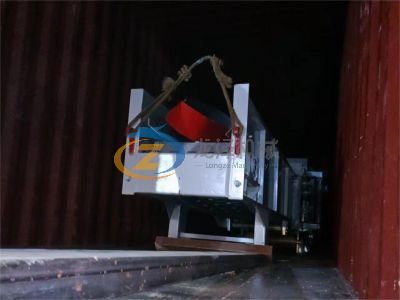

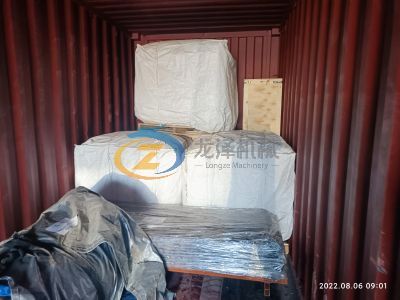

40’HQ/6PKG/7000KGS/20CBM
Loading equipment:8ton forklift,3 loading staffs
Longze factory covers an area of nearly 60,000 square meters, with large wood chipper, wood hammer mill, wood dryer, wood pellet machine, cooling machine, packing machine and wood pellet making related assistant equipment. The company not only cooperates with China “CHINT”, “DELIXI”, “SCHNEIDER”, ”HARBIN BEARING”, German brand “Siemens Motor” and other domestic more than 500 large and medium-sized enterprises to establish long-term strategic cooperative relations. The products are also exported to more than 60 countries and regions in Europe, Spain, Romania, Bulgaria, the Middle East, India, Pakistan, Southeast Asia Vietnam, Malaysia, Thailand, Indonesia, Myanmar, and Australia. The equipment is widely used in Power Plant, Paper Mill, Furniture Factory, Biomass Energy Industry.
55kw GX216 wood chipperModel：GX216
Rotor diameter (mm)：650
Blade quantity (piece)：3
Input size (mm)：540 x 240
Blade rotational speed (rpm)：590
Rate of feeding (m/min)：38
Max material diameter (mm)：220
Capacity (tph)：6-8
Main power (kw)：55
Feeding motor (kw)：3+4
Discharging motor (kw)：3+3
Oil pump motor (kw)：1.5
Feeding conveyor length (mm)：4000
Discharge conveyor length (mm)：10000
Weight (t)：4.5- 110kw GX218 wood chipperModel：GX218
Rotor diameter (mm)：800
Blade quantity (piece)：3
Input size (mm)：680 x 310
Blade rotational speed (rpm)：650
Rate of feeding (m/min)：35-38
Max material diameter (mm)：300
Capacity (tph)：8-10
Main power (kw)：110
Feeding motor (kw)：5.5+4
Discharging motor (kw)：3+3
Oil pump motor (kw)：1.5
Feeding conveyor length (mm)：4000
Discharge conveyor length (mm)：10000
Weight (t)：7
